Single phase high frequency online rack ups 220Vac 2U 3U 19Inch 20Kva 30Kva 40Kva Rack Mount UPS For Server Room

Ask Lasest Price
Brand Name :	Visench
Model Number :	40Kva
Supply Ability :	10000pcs/month
Delivery Time :	30days

Add to Cart

Product Details
Company Profile

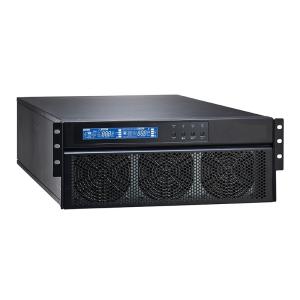

Single phase high frequency online rack ups 220Vac 2U 3U 19Inch 20Kva 30Kva 40Kva Rack Mount UPS For Server Room

RTX Series

PRODUCT FEATURES

1. 19 inches standard design of rack mount, compact structure .

2. Sin wave output provides best power supply guarantee.

3. 0 conversion time between mains mode and battery mode.

4. It has detection function of input zero line and fire line.

5. Having voltage surge protection function and strong anti-interference function.

6. Equipped with correction function of input power factor

7. Supporting mobile smart monitoring card , users can real-time monitor every data of the UPS by mobile APP.

PARAMETER RTX31 10-20K
Model		RTX31 10KS	RTX31 15KS	RTX31 20KS
Rated Power		10kVA/9kW	15kVA/13.5kW	20kVA/18kW
Input	Voltage Range	207-475Vac 3P4W+G
	Working Frequency Range	40-70Hz (settable)
	Input Power Factor	≥0.95
Output	Rated Voltage and Accuracy	220Vac(1±1%) 1P2W+G
	Output Frequency	46-54Hz synchronize with mains power; 50Hz (Mains power between 40-46Hz and 54-60Hz ); 50Hz(Battery)
	Rated Current	45A	68A	91A
	Output Power Factor	0.9
	Output Harmonic Wave	≤3%
	Crest Factor		3:	1
	Output Overload	105%±5%＜Load≤125%±5%: Convert to bypass output and alarm after 1 min; 125%±5%＜Load≤150%±5%: Convert to bypass output and alarm after 30s; Load＞150%±5%: Convert to bypass output and alarm after 300ms.
Conversion time between Mains Power and Battery		0ms
Efficiency		＞92%
Battery	Rated Voltage	192Vdc
	Quantity	16
	Charging Current	5.5A
Dimension (LxWxH) mm		665x482.6x132.5	655x482.6x265
Weight		23kg	34kg	35kg
Working Temperature		0℃-40℃
Working Humidity		20%-95%
Noise		≤60dB

Single phase high frequency online rack ups 220Vac 2U 3U 19Inch 20Kva 30Kva 40Kva Rack Mount UPS For Server Room
